Learning Structure from Motion from motion

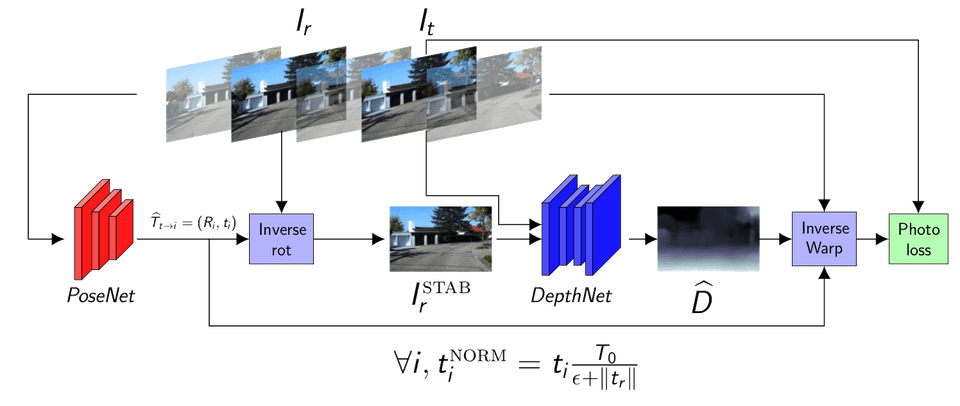

figure Unsupervised DepthNet training workflow

Abstract

This work is based on a questioning of the quality metrics used by deep neural networks performing depth prediction from a single image, and then of the usability of recently published works on unsupervised learning of depth from videos. These works are all predicting depth from a single image, thus it is only known up to an undetermined scale factor, which is not sufficient for practical use cases that need an absolute depth map, i.e. the determination of the scaling factor.

To overcome these limitations, we propose to learn in the same unsupervised manner a depth map inference system from monocular videos that takes a pair of images as input. This algorithm actually learns structure-from-motion from motion, and not only structure from context appearance. The scale factor issue is explicitly treated, and the absolute depth map can be estimated from camera displacement magnitude, which can be easily measured from cheap external sensors.

Our solution is also much more robust with respect to domain variation and adaptation via fine tuning, because it does not rely entirely on depth from context. Two use cases are considered, unstabilized moving camera videos, and stabilized ones. This choice is motivated by the UAV (for Unmanned Aerial Vehicle) use case that generally provides reliable orientation measurement.

We provide a set of experiments showing that, used in real conditions where only speed can be known, our network outperforms competitors for most depth quality measures. Results are given on the well known KITTI dataset, which provides robust stabilization for our second use case, but also contains moving scenes which are very typical of the in-car road context.

We then present results on a synthetic dataset that we believe to be more representative of typical UAV scenes. Lastly, we present two domain adaptation use cases showing superior robustness of our method compared to single view depth algorithms, which indicates that it is better suited for highly variable visual contexts.

Paper

UAVg

Learning Structure From Motion From Motion

In GMDL Workshop at ECCV 2018

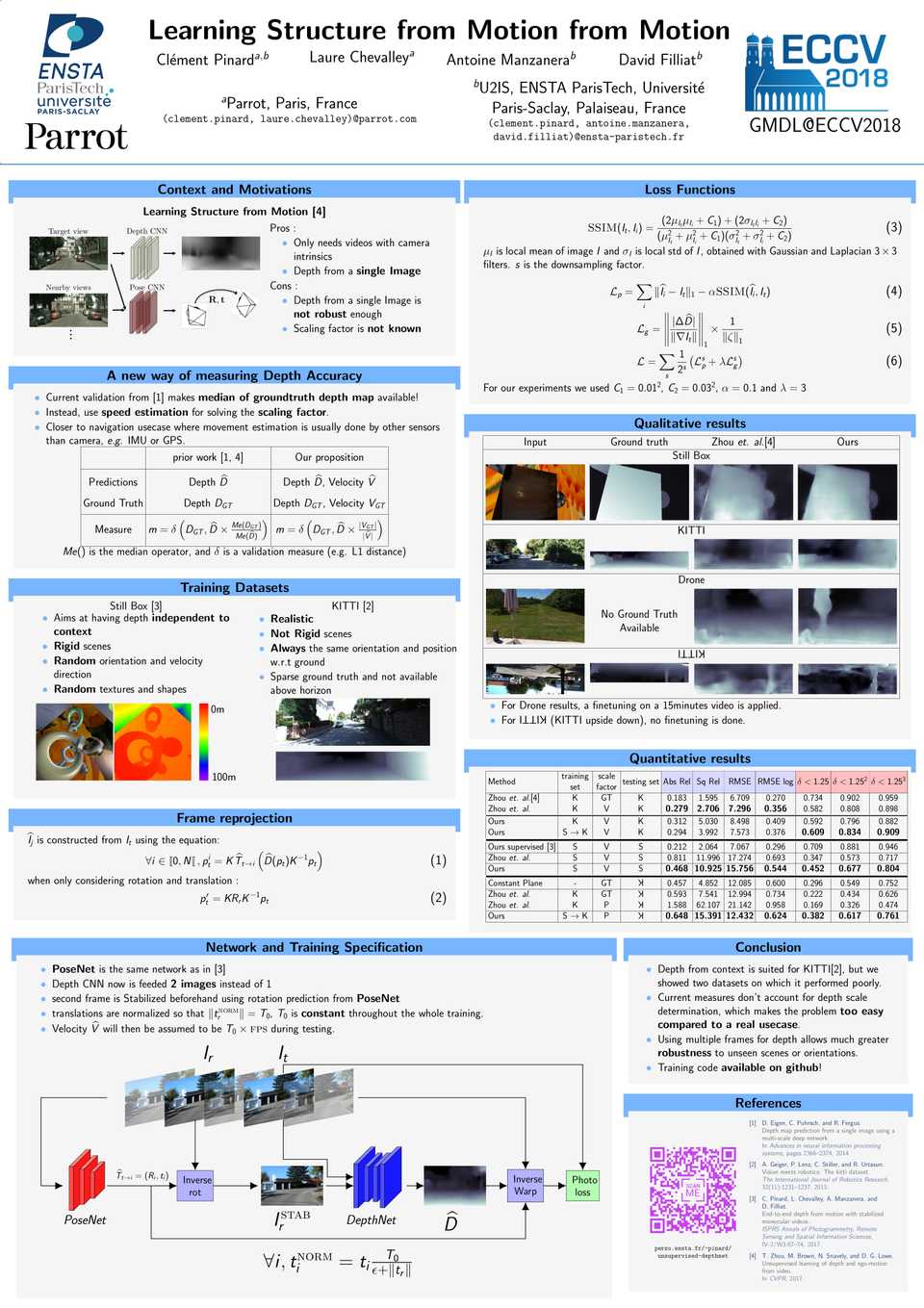

Full Text / Poster / ArXiV / Hal / Cite

Additional results

Code

Training code is available on Github

Github Repo
Github StarsGithub Forks

Citation

If you use unsupervised DepthNet in your research, please add the following reference.

@inproceedings{pinard2018learning,
  title={Learning structure-from-motion from motion},
  author={Pinard, Cl{\'e}ment and Chevalley, Laure and Manzanera, Antoine and Filliat, David},
  booktitle={Proceedings of the European Conference on Computer Vision (ECCV) Workshops},
  year={2018}
}
